Inductive Sensors

We are Inductive Sensors Suppliers, Distributors & Importers in Pan India.

Enquiry Us

Types Of Inductive Sensors

CYLINDRICAL TYPE

M5 - IA05BSF10PO

——————————————–

Download Datasheet

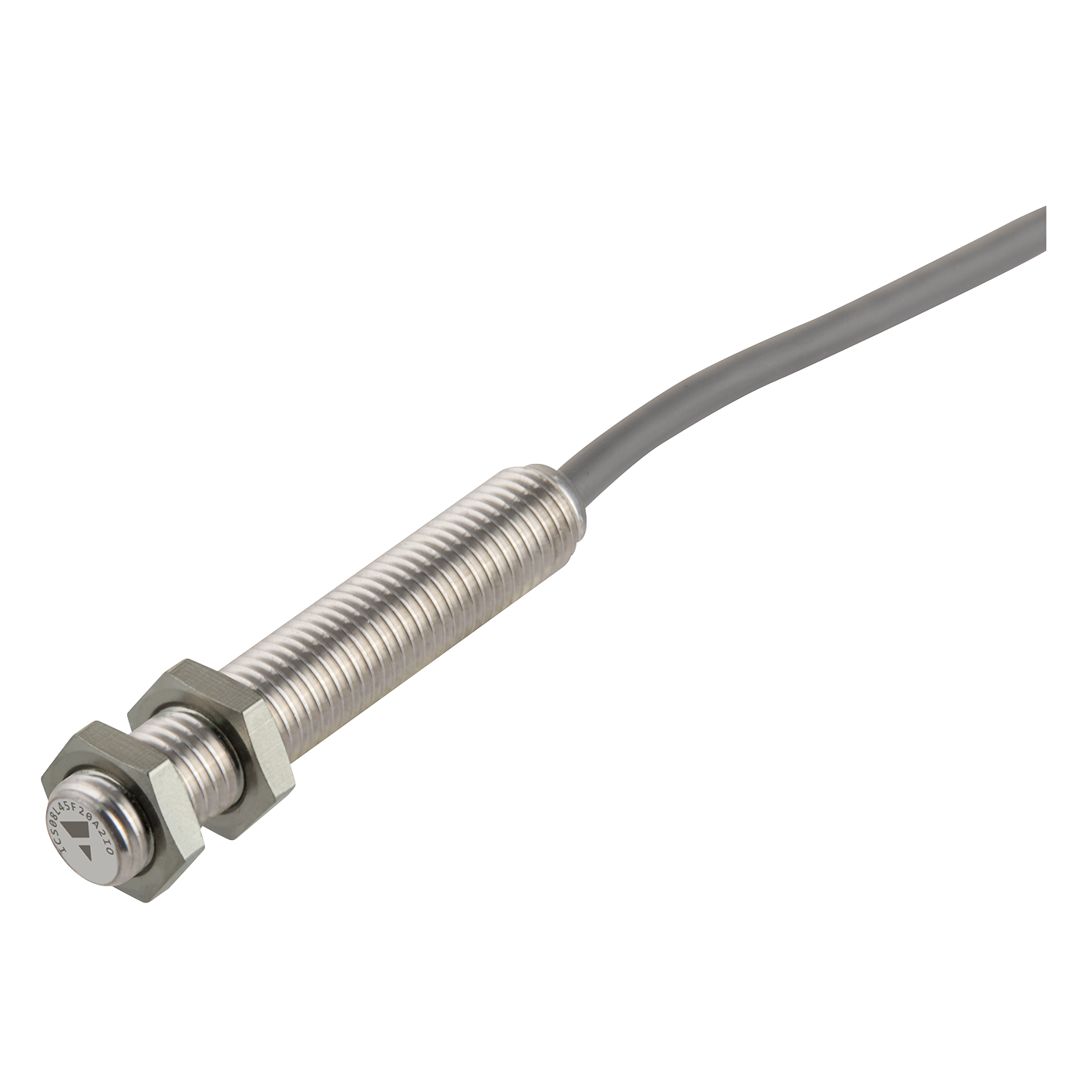

M8 - ICS08L45F20A2IO

Inductive proximity sensor, M8 Stainless steel, 2m cable, Sn 2mm, Flush mount, Long body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-30Vdc, Max output current 100 mA, Max switching frequency 2 kHz, Operating temperature -25C – +80C, IP67, IO-Link

Download Datasheet

M12 - ICB12S30F04PO

Inductive proximity sensor, M12 Nickel-Plated Brass, 2m cable, Sn 4mm, Flush mount, Short body, PNP NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, Operating temperature -25C – +70C, IP67

Download Datasheet

M18 - ICB18L50F08PO

Inductive proximity sensor, M18 Nickel-Plated Brass, 2m cable, Sn 8mm, Flush mount, Long body, PNP NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1,5 kHz, Operating temperature -25C – +70C, IP67

Download Datasheet

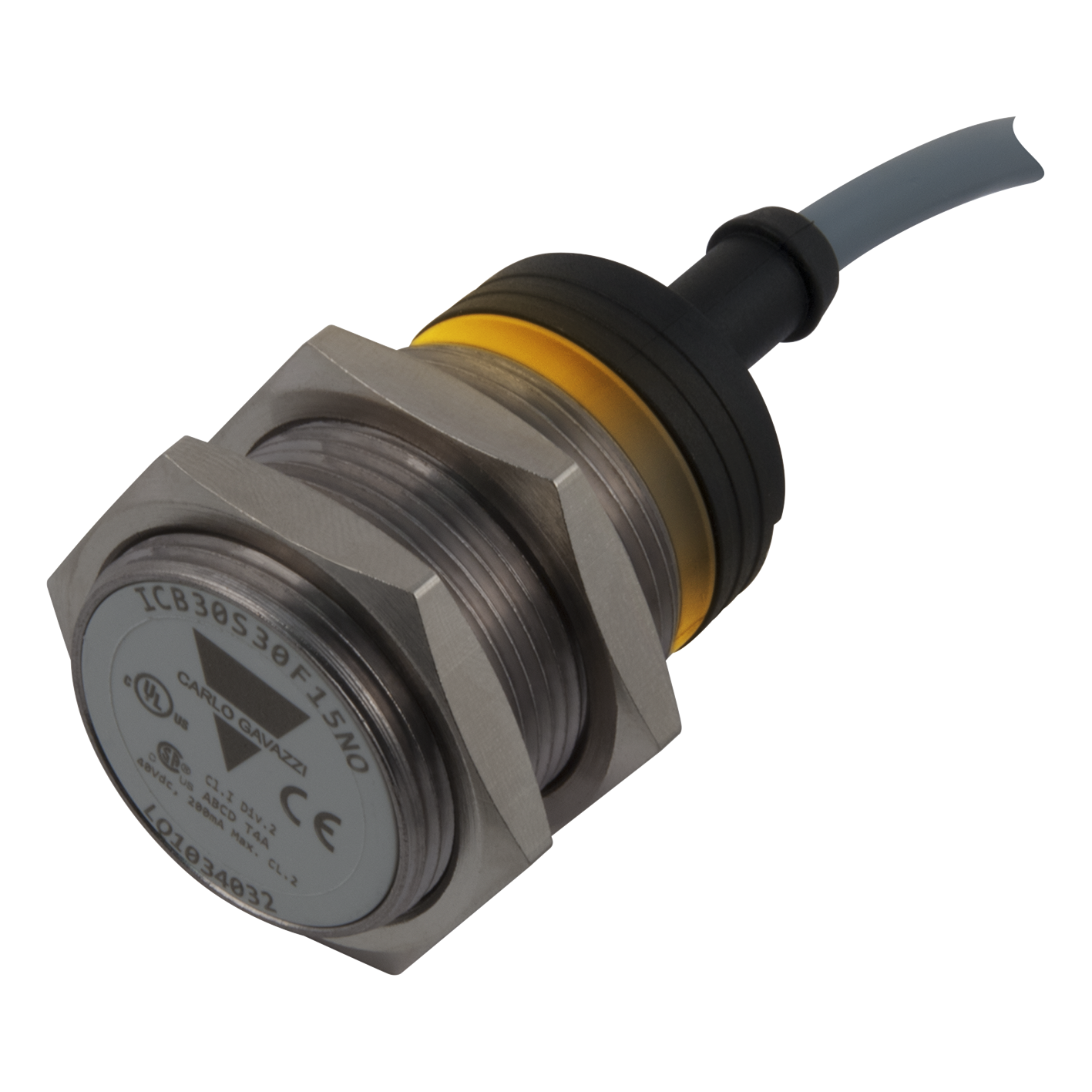

M30 - ICB30S30F15PO

Inductive proximity sensor, M30 Nickel-Plated Brass, 2m cable, Sn 15mm, Flush mount, Short body, PNP NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 1 kHz, Operating temperature -25C – +70C, IP67

Download Datasheet

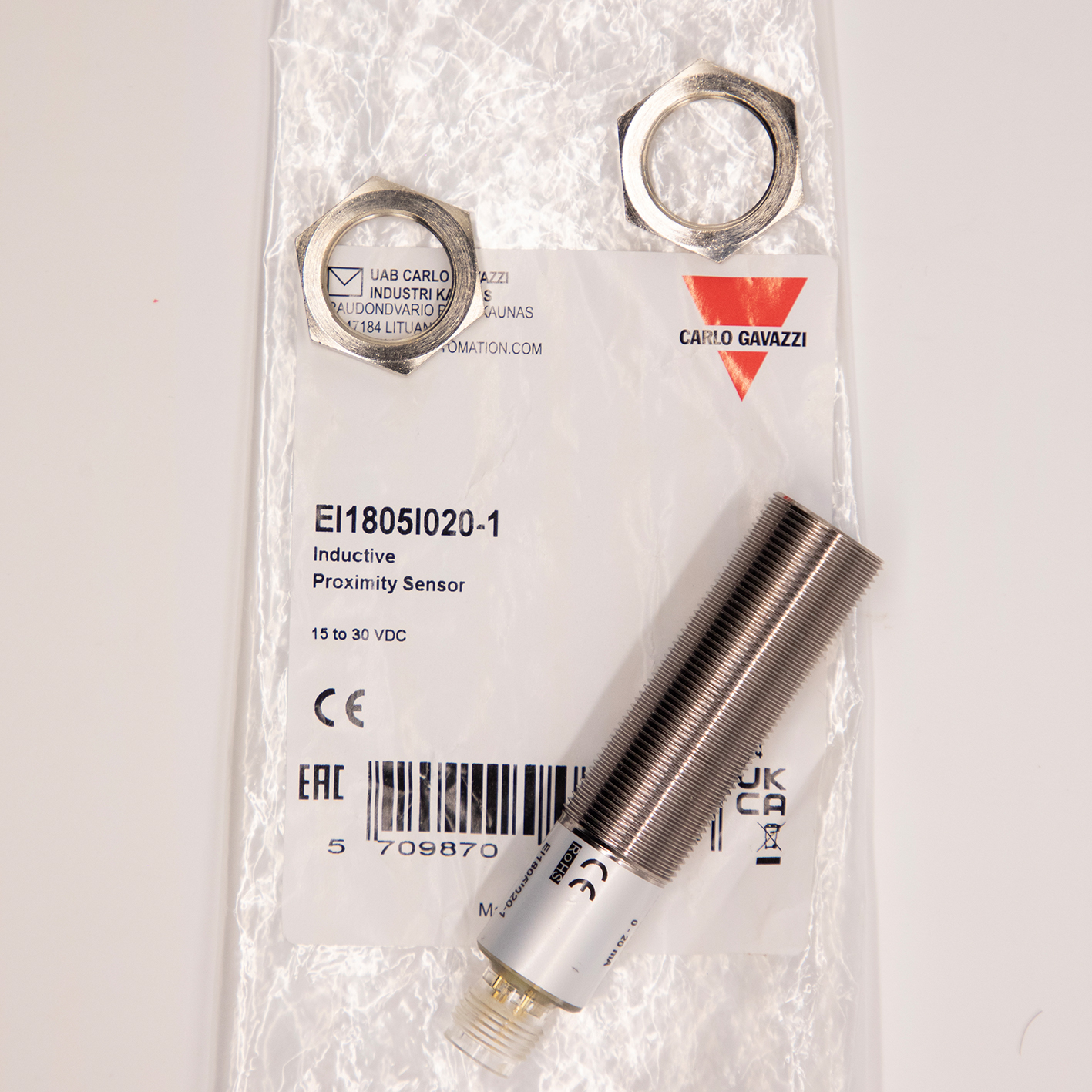

EI1805I020-1

Proximity Sensors – Industrial IND ANALOG SNSR 0-20 W/PLUG

Download Datasheet

IA08BLF15POM1

Proximity Sensors – Industrial IND PROX SL M8 DC PNP NO PLUG

Download Datasheet

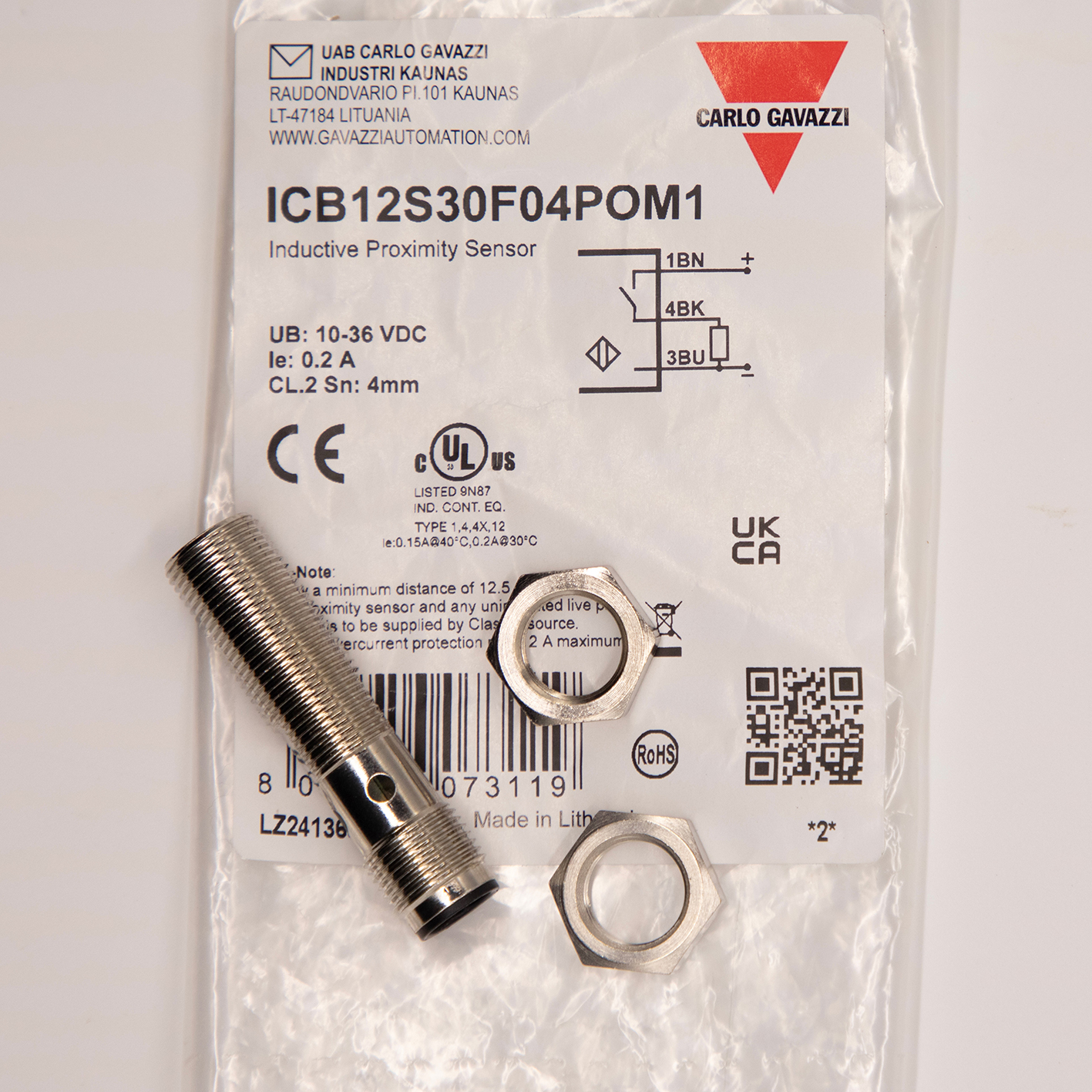

ICB12S30F04POM1

Inductive proximity sensor, M12 Nickel-Plated Brass, M12 plug, Sn 4mm, Flush mount, Short body, PNP NO output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, Operating temperature -25C – +70C, IP67

Download Datasheet

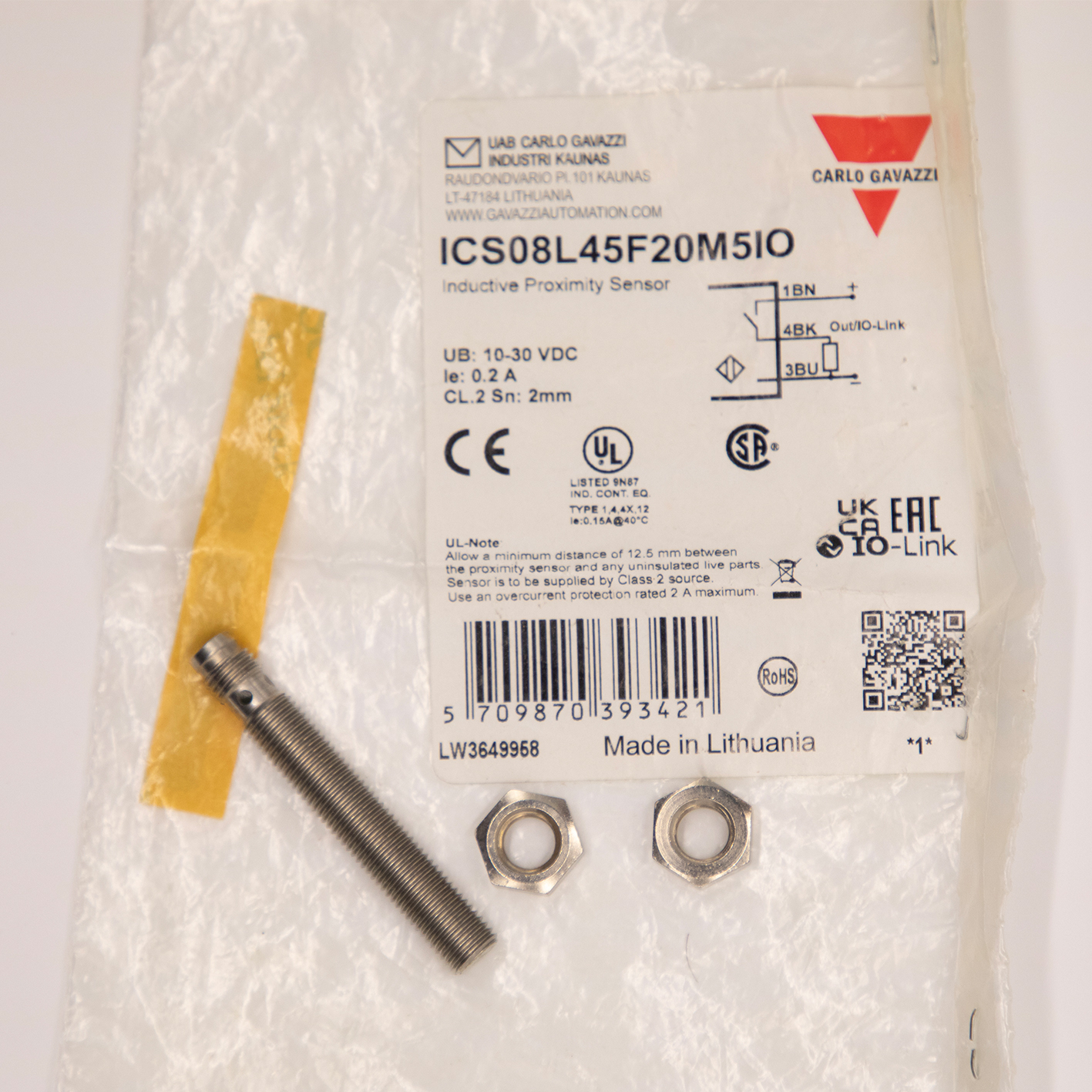

ICS08L45F20POM5IO

Inductive proximity sensor, M8 Stainless steel, M8 plug, Sn 2mm, Flush mount, Long body, NPN/PNP/Push-pull, NO/NC, Supply voltage 10-30Vdc, Max output current 100 mA, Max switching frequency 2 kHz, Operating temperature -25C – +80C, IP67, IO-Link

Download Datasheet

FLAT TYPE

EI5515PPAP

Inductive proximity sensor, 35x55x15mm, Polycarbonate Housing Flat Pack, 2m Cable, Sn 15mm, No flush mount, PNP NO+NC output, 10-32Vdc, 200 mA, Max op. freq. 250Hz, Op. temperature -25C – +70C, IP67.

Download Datasheet

FORK TYPE

DU10 (NAMUR)

Special fork-shaped proxim ity switch. Slot sizes 3.5, 5, 6 or 10 mm. With transistor NPN or made in accordance with NAMUR DIN 19234. Sturdy ABS housing.

Download Datasheet

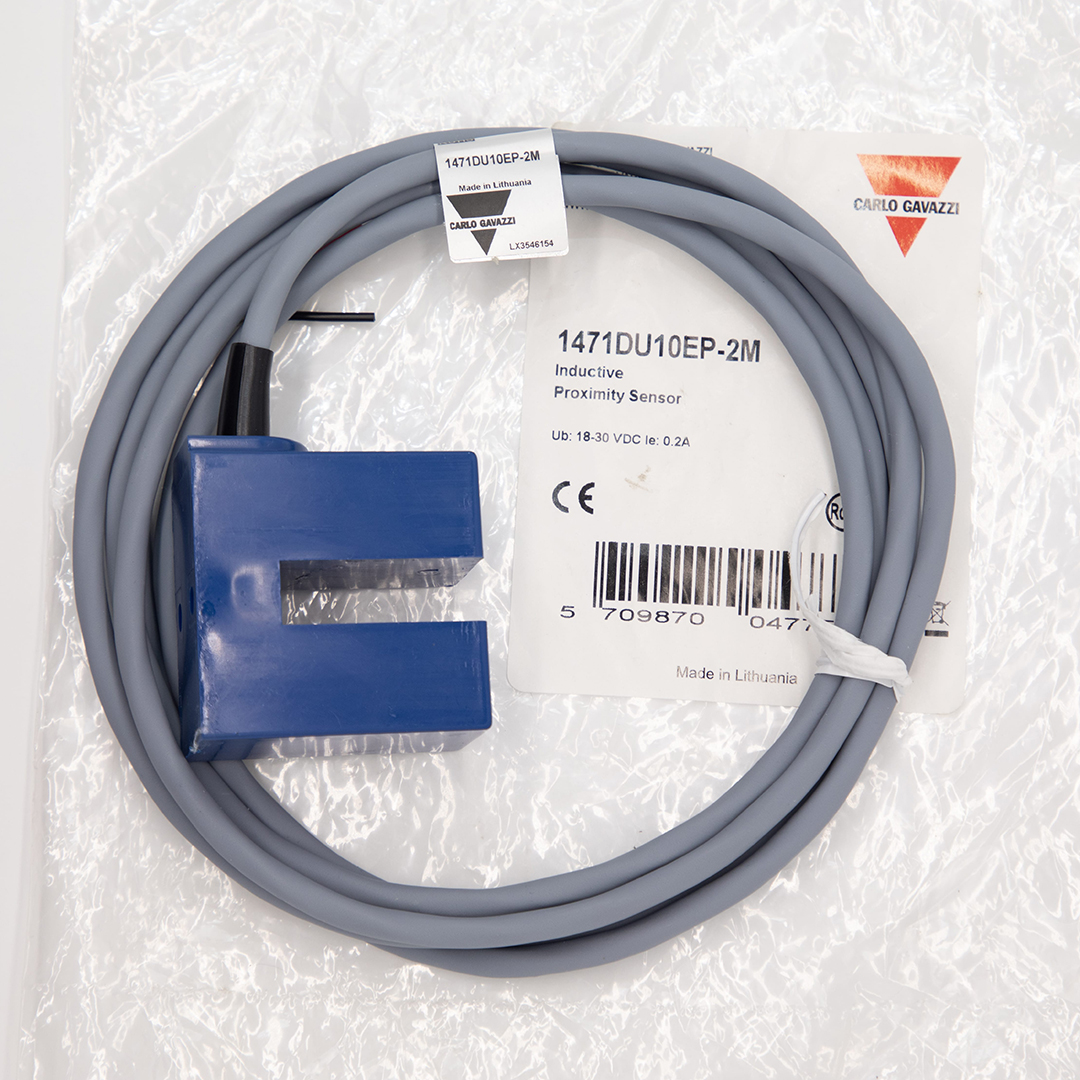

DU10EP-2M

Fork-shaped ABS housing • Slot sizes: 10 mm • Power supply: 24 VDC • Output: Transistor PNP, make switching • Protection: Reverse polarity • Shielded cable

Download Datasheet

SQUARE TYPE

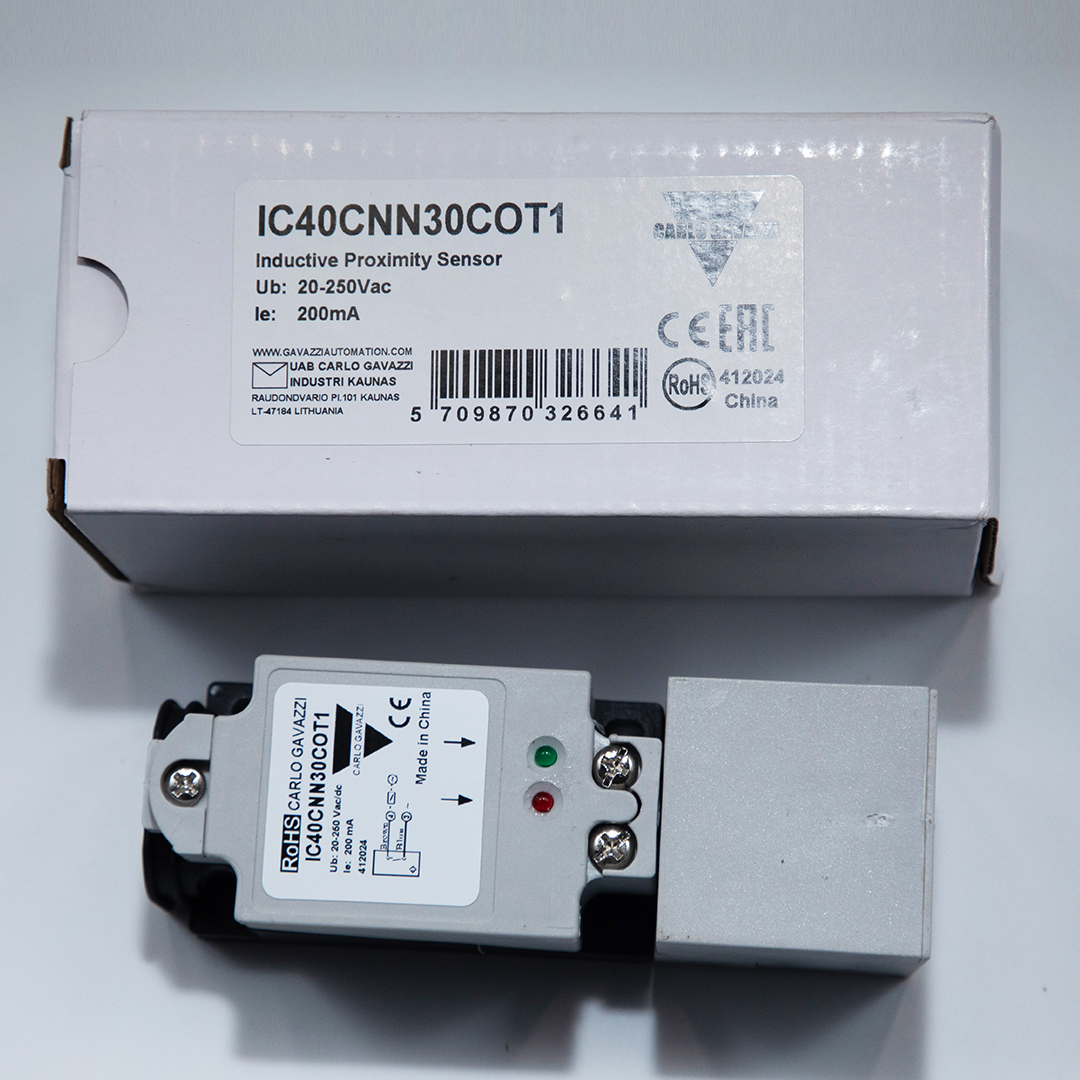

IC40CNN30COT1

Inductive proximity switch in standard limit switch hous ing. Rugged polyester hous ing. Sensing face adjustable in up to 5 positions. 2-wire AC/DC for maximum efficiency.

Download Datasheet
